10m antennas

The antenna system for 10m currently consist of a 6/6el monoband stack and a 6el monobander @46m. This 6/6el antenna system is thought out to be the 2nd antenna system on 10m when we in the future hope to add a big stack in another rotatable tower. This antenna system is located on a small rotatable tower which is telescopic and has got an Emotator 1103 turning it. The antennas are stacked at 15 over 9.5m and below you can see the stack responses to the important directions. The 6el monobander which is located at 46m in the 60m tower, is thought out to be used when there are very limited propagation’s, during band openings/closings when very low angles are needed.

The antennas are CUE DEE but with rebuilt feed point system from gamma to hairpin.

The 6/6el antenna system is fed by a 7/8″ cable and the jumper cable up to the tower consist of about 8m 1/2″ superflex coax. The 6el sitting at 46m in the 60m tower, is fed with 1/2″ hardline and jumpered over to 3/8″ superflex which goes out to the beam.

Plans are to add a 7/7/7/7el OWA stack as main antenna system, however this is unsure of when it will happen.

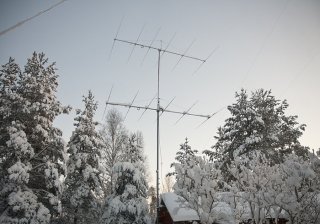

10m stack

10m stack

10m stack another view

HFTA stack response towards JA

HFTA stack response towards VK

HFTA stack response towards Europe

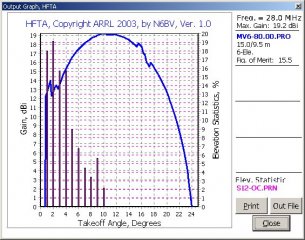

HFTA stack response towards South America

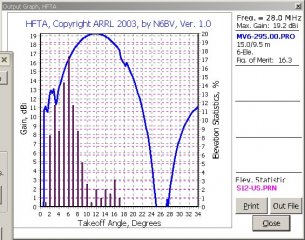

HFTA stack response towards USA (295 deg)

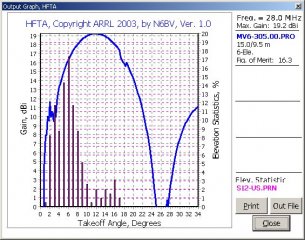

HFTA stack response towards USA (305 deg)

HFTA stack response towards USA (315 deg)

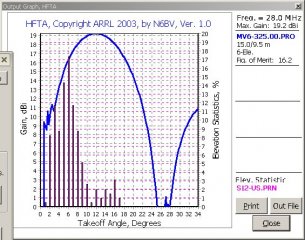

HFTA stack response towards USA (325 deg)


Construction pictures of this antenna:

Part 1

Part 2

Part 3

Part 4

Part 5

Part 6

Part 7
